Whirlpool 24” Laundry Center -YLTE5243DQ3

The Whirlpool 24” Laundry Center, model YLTE5243DQ3, is a compact, vertically stacked electric washer and dryer unit designed to fit into smaller living spaces, such as apartments or condos.

Key Features and Specifications:

• Type: Electric Laundry Center (Stacked Washer and Dryer).

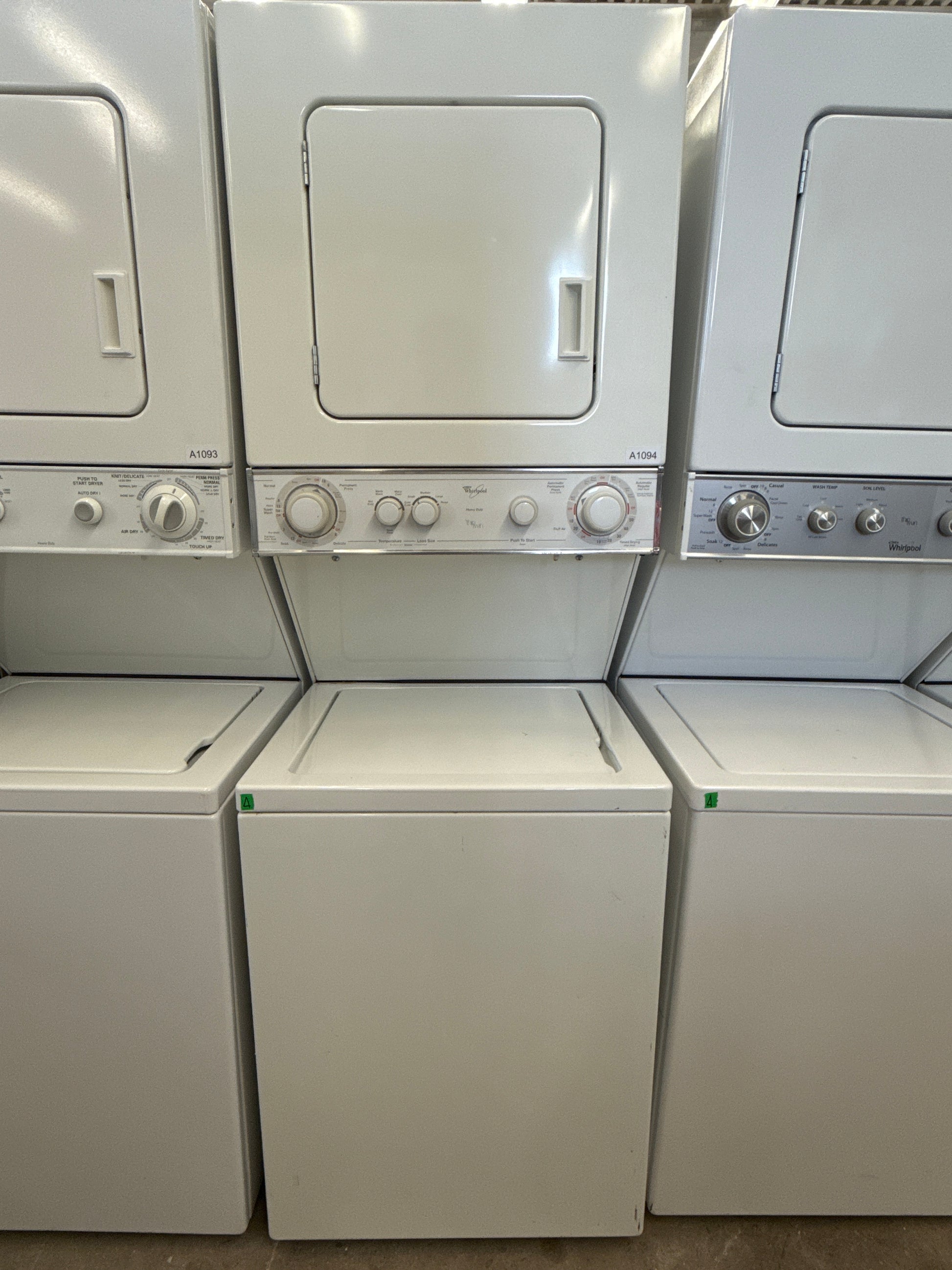

• Design: This appliance features a top-load washer at the bottom and an electric dryer stacked directly above it, all within a single chassis. It is typically available in a white finish.

• Washer Capacity: Approximately 1.5 cubic feet. This compact capacity is suitable for small to medium-sized loads, allowing for efficient use of space.

• Dryer Capacity: Approximately 3.4 cubic feet. The dryer capacity is designed to accommodate the loads from the washer.

• Wash System: It utilizes a Surgilator® Agitator. This agitator creates a continuous rollover action, providing a thorough cleaning of the wash load. It also features a "Stepped-Down Agitation" system for varying agitation speeds to maximize cleaning and gentleness.

• Wash Cycles: Offers 5 automatic wash cycles, which commonly include options such as Normal, Soak, Delicate, and Permanent Press.

• Washer Temperature Settings: Provides 4 wash/rinse temperature combinations.

• Washer Features:

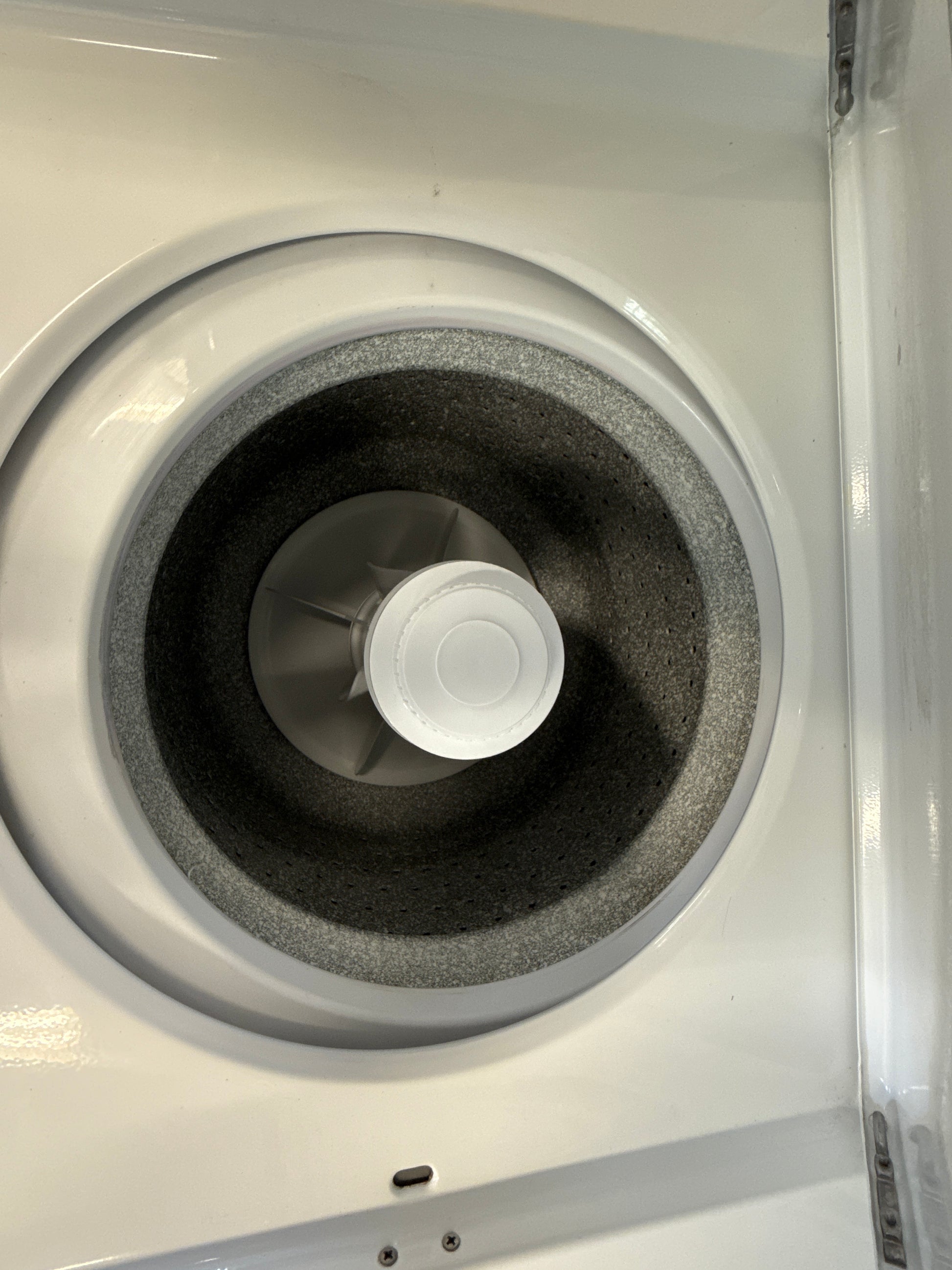

  • Spreckle Porcelain Wash Basket: The wash basket is made of porcelain-coated steel, offering a smooth, durable finish that helps protect clothes from damage.

  • 3 Water Level Selections, allowing you to choose the right water level for your load size.

  • 5 Wash/Spin Speed Combinations.

• Dryer Cycles: Offers 18 dryer cycles, including options like Timed Dry, Permanent Press, and Air Only, handling a variety of fabrics.

• Dryer Temperature Settings: Provides 4 temperature settings to handle different fabric types.

• Dryer Features:

  • Automatic Dry-Miser Control: This automatic cycle senses exhaust air temperature and shuts the dryer off when the chosen dryness level is reached, taking the guesswork out of drying.

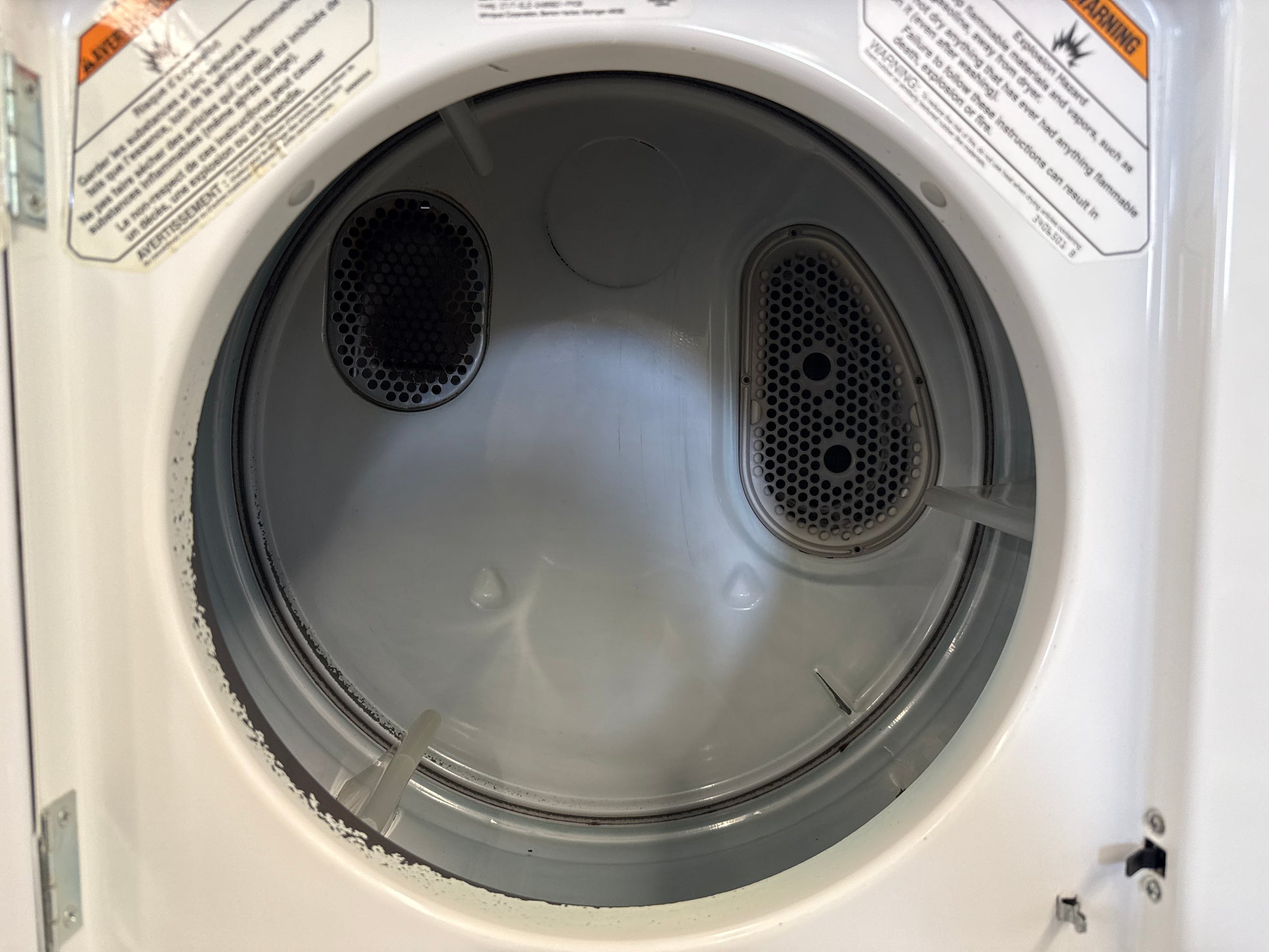

  • DuraWhite™ Interior: The dryer drum is typically made with a durable white finish.

  • End-of-Cycle Signal: Alerts you when a cycle is complete.

  • Rear-mounted Lint Filter.

  • Vented Drying Type: Requires external venting.

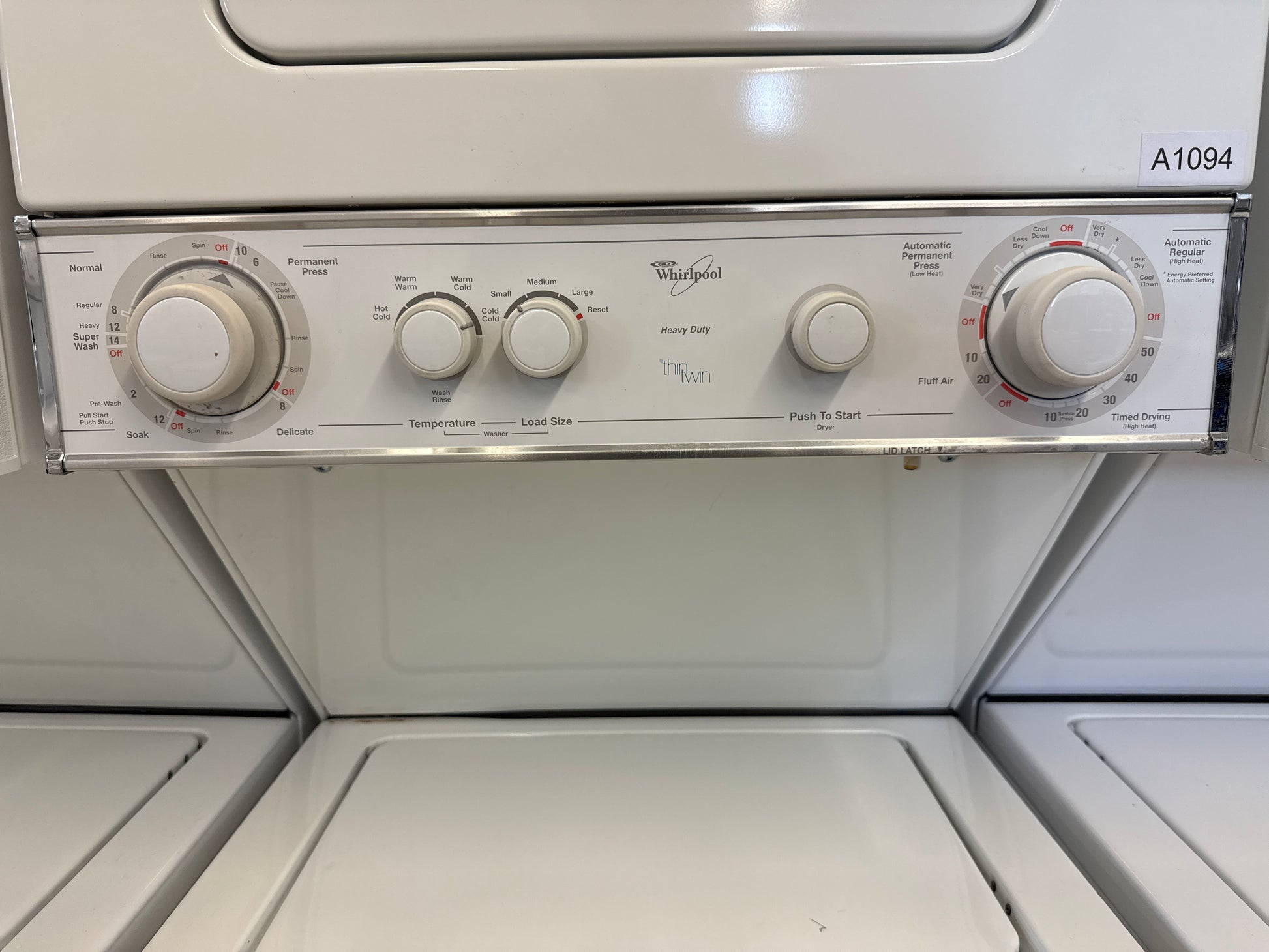

• Controls: Uses simple rotary electromechanical controls (knobs) for cycle and option selection for both the washer and dryer, emphasizing ease of use.

• Efficiency: Designed for efficiency, with an estimated annual energy consumption of approximately 483 kWh. It is typically not CEE rated.

• Power: Electric dryer, typically requiring a 240V or 208V, 30A electrical connection. The heating element is rated at 3600 Watts.

• Venting: Features 4-way venting capability, offering flexibility for installation.

Dimensions:

• Overall Width: 23 7/8 inches (60.6 cm) or 24 inches (61 cm)

• Overall Depth: 27 1/4 inches (69.2 cm) or 27.25 inches

• Overall Height: 71 3/4 inches (182.2 cm) or 71.75 inches

• Depth with Washer Door Open 90 Degrees: Approximately 42.4 inches (107.7 cm)

• Washer Height (to top of cabinet): Approximately 32 1/8 inches (81.6 cm)

• Dryer Height (top of unit): Approximately 27 5/8 inches (70.2 cm)
